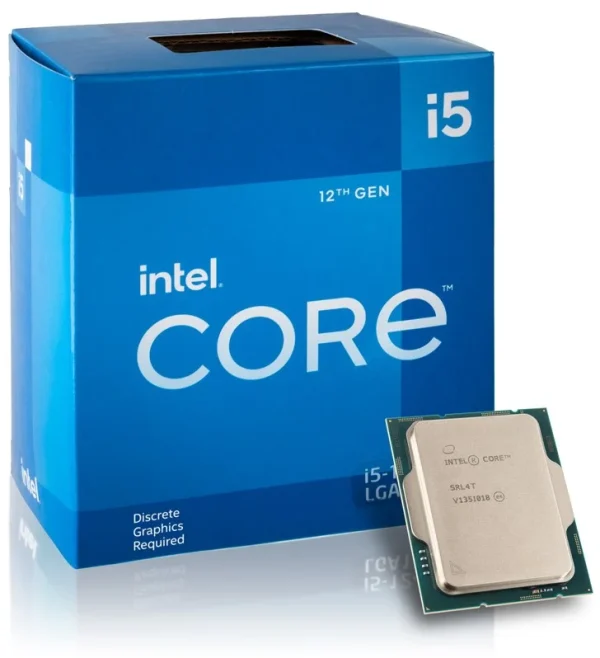

Intel Core i5-12400F 2.5 GHz 6-Core LGA 1700 Processor + FAN

L13500

CPU Model
Intel Core i5-12400F (12th Gen)
CPU Socket
LGA 1700
Unlocked
No
Number of Cores
6 (6 x P-Cores)
Base Clock Speed
P-Core: 2.5 GHz
Maximum Boost Speed
P-Core Turbo: 4.4 GHz
Thermal Design Power (TDP, Max)
65 W
Included Thermal Solution
Laminar RM1 (117 W)
Integrated Graphics
No

Description

General
CPU Model
Intel Core i5-12400F (12th Gen)
CPU Socket
LGA 1700
Manufacturing Process
10 nm
Maximum CPU Configuration
1S
Maximum Number of PCIe Lanes
16 (Revision 5.0)
4 (Revision 4.0)
Unlocked
No
Performance
Number of Cores
6 (6 x P-Cores)
Number of Threads
12
Base Clock Speed
P-Core: 2.5 GHz
Maximum Boost Speed
P-Core Turbo: 4.4 GHz
L3 Cache
18 MB
Memory Support
Maximum Capacity
128 GB
Memory Support
DDR4 Up to 3200 MHz
DDR5 Up to 4800 MHz
ECC Memory
No
Channel Architecture
Dual Channel
Maximum Memory Bandwidth
76.8 GB/s
Optane Memory Support
Yes
Power
Thermal Design Power (TDP, Max)
65 W
Included Thermal Solution
Laminar RM1 (117 W)
Maximum Temperature
212°F / 100°C
Thermal Monitoring Technologies
Yes
Technology
AES Support
Yes
Extension
AVX 2.0, AVX-512, SSE 4.1/4.2
Instruction Set
64-Bit
Virtualization
Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT)
DMI
DMI4 (16 GT/s)
vPro Support
Yes
Performance Technologies
Deep Learning Boost, Gaussian and Neural Accelerator 3.0, Hyper-Threading, SpeedShift, Turbo Boost 2.0
Security Technologies
Control-Flow Enforcement (CET), Device Protection with Boot Guard, Execute Disable Bit, MBE (Mode-Based Execute) Control, OS Guard, Secure Key
Integrated Graphics
Integrated Graphics
No
Packaging Info
Package Weight
1.015 lb
Box Dimensions (LxWxH)
4.9 x 4.3 x 3.1″
